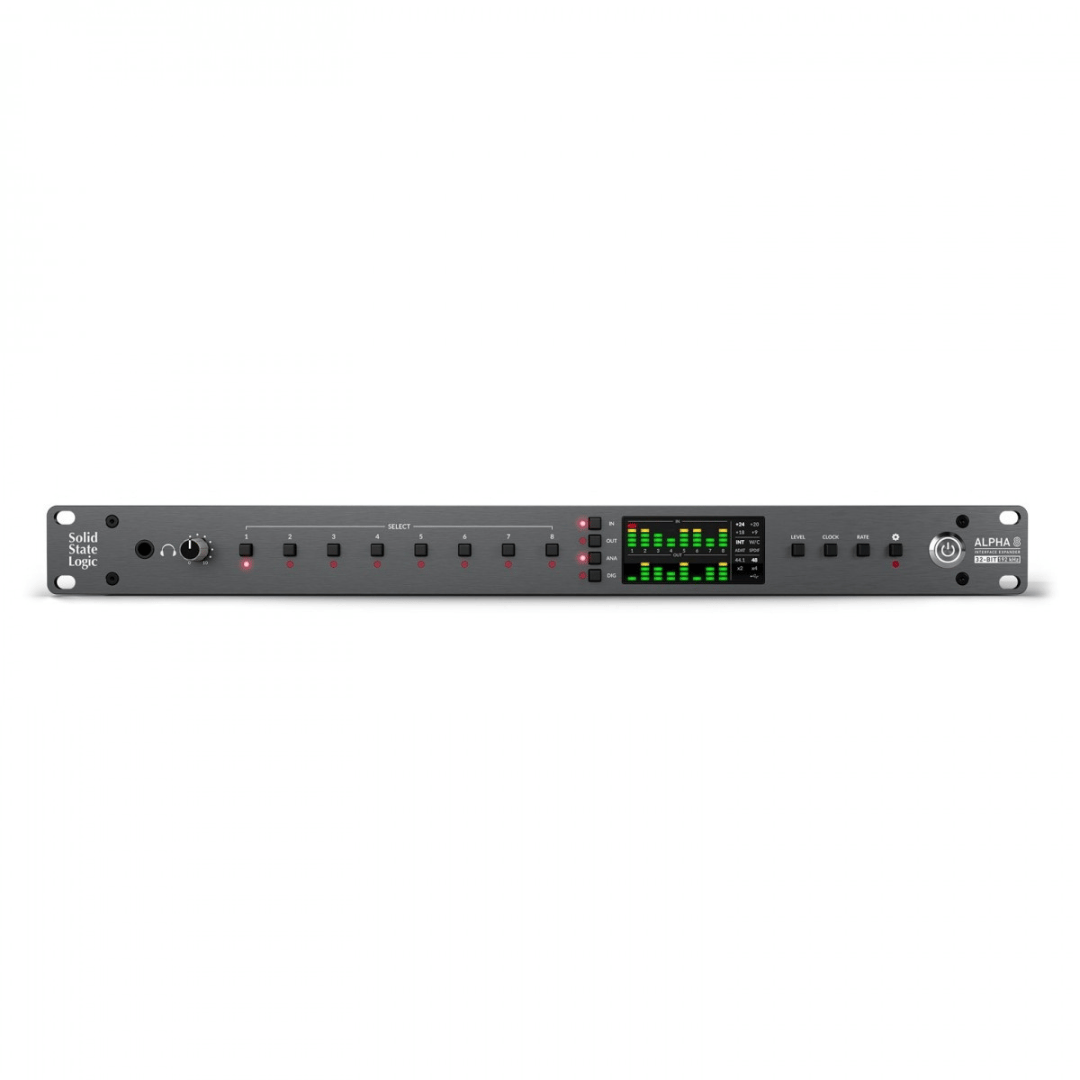

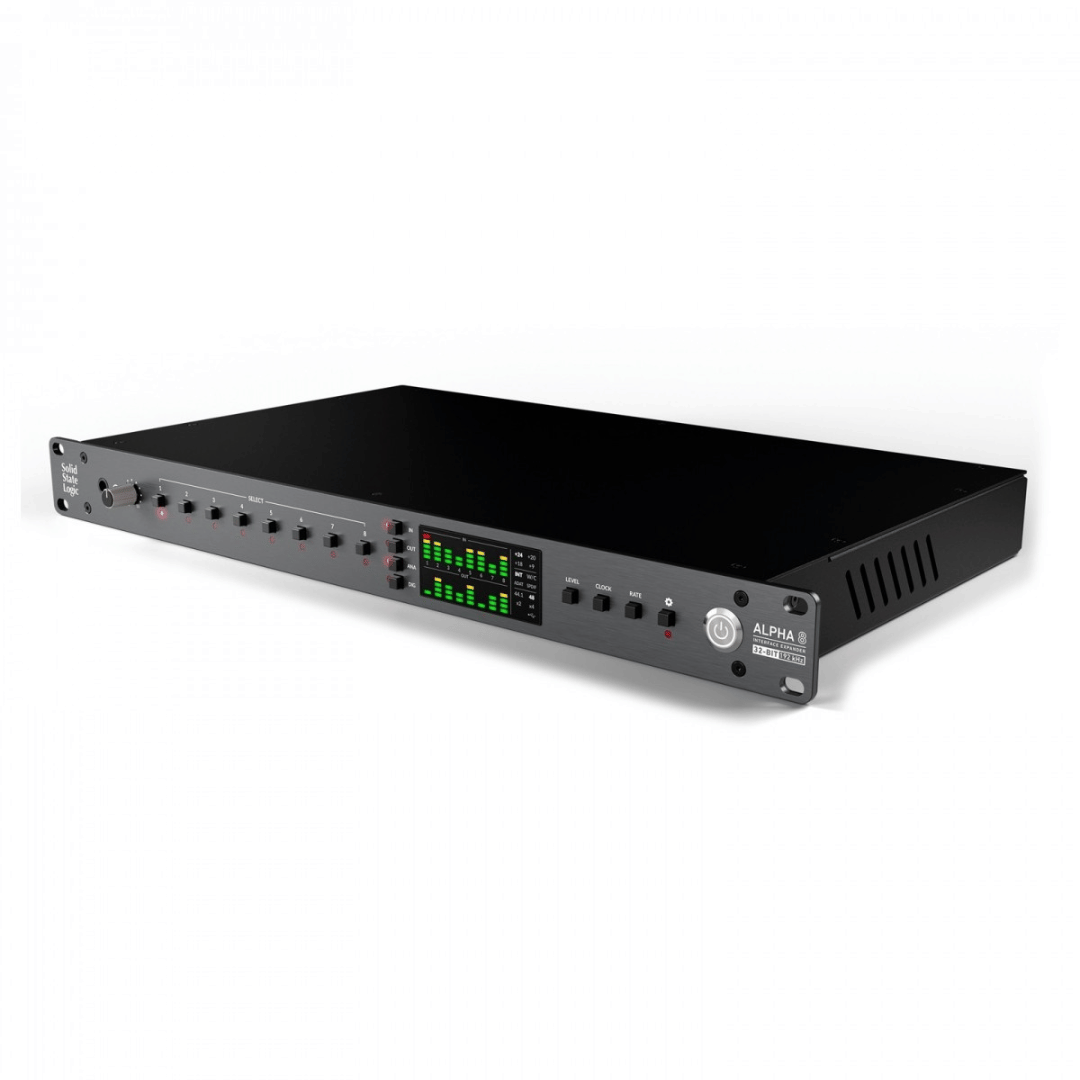

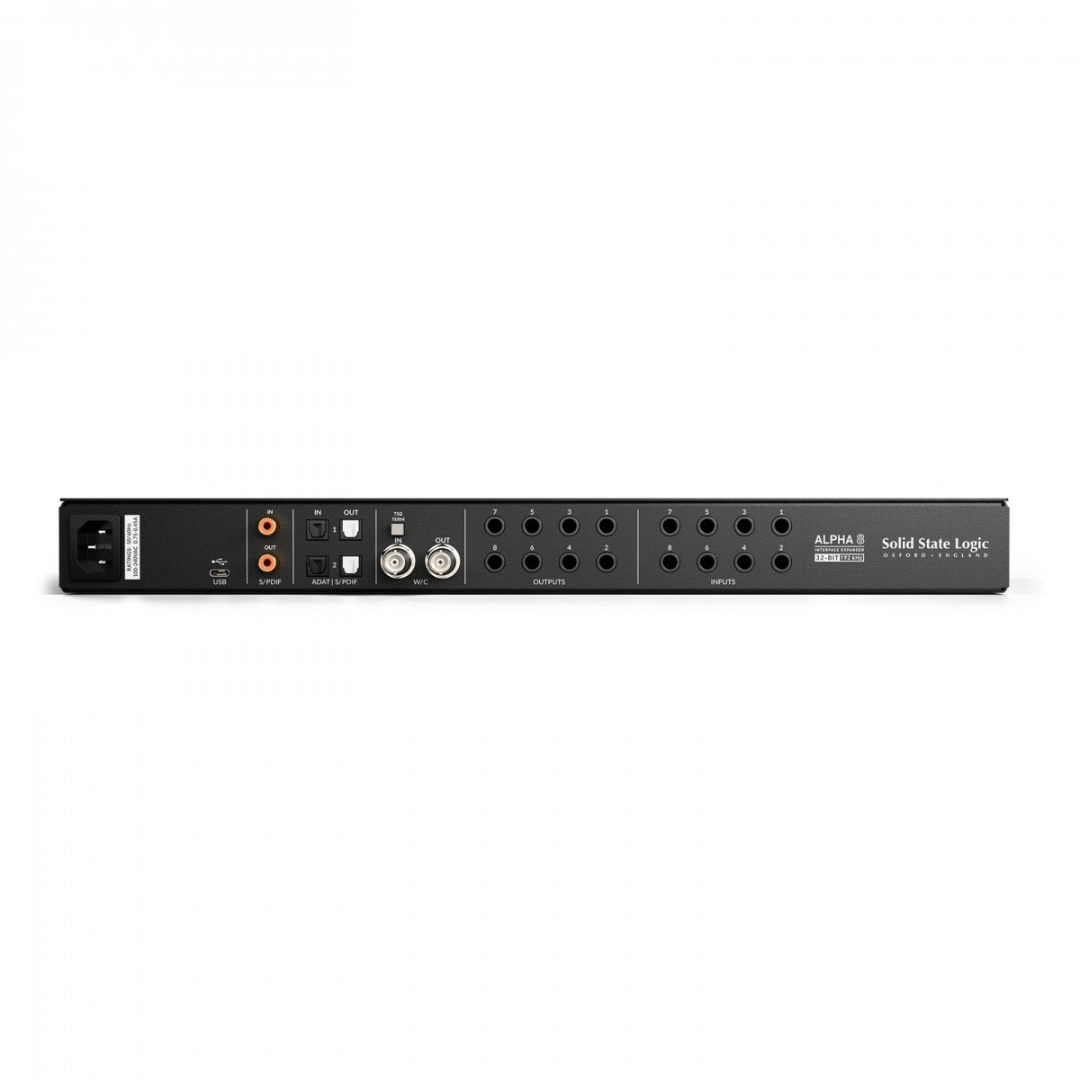

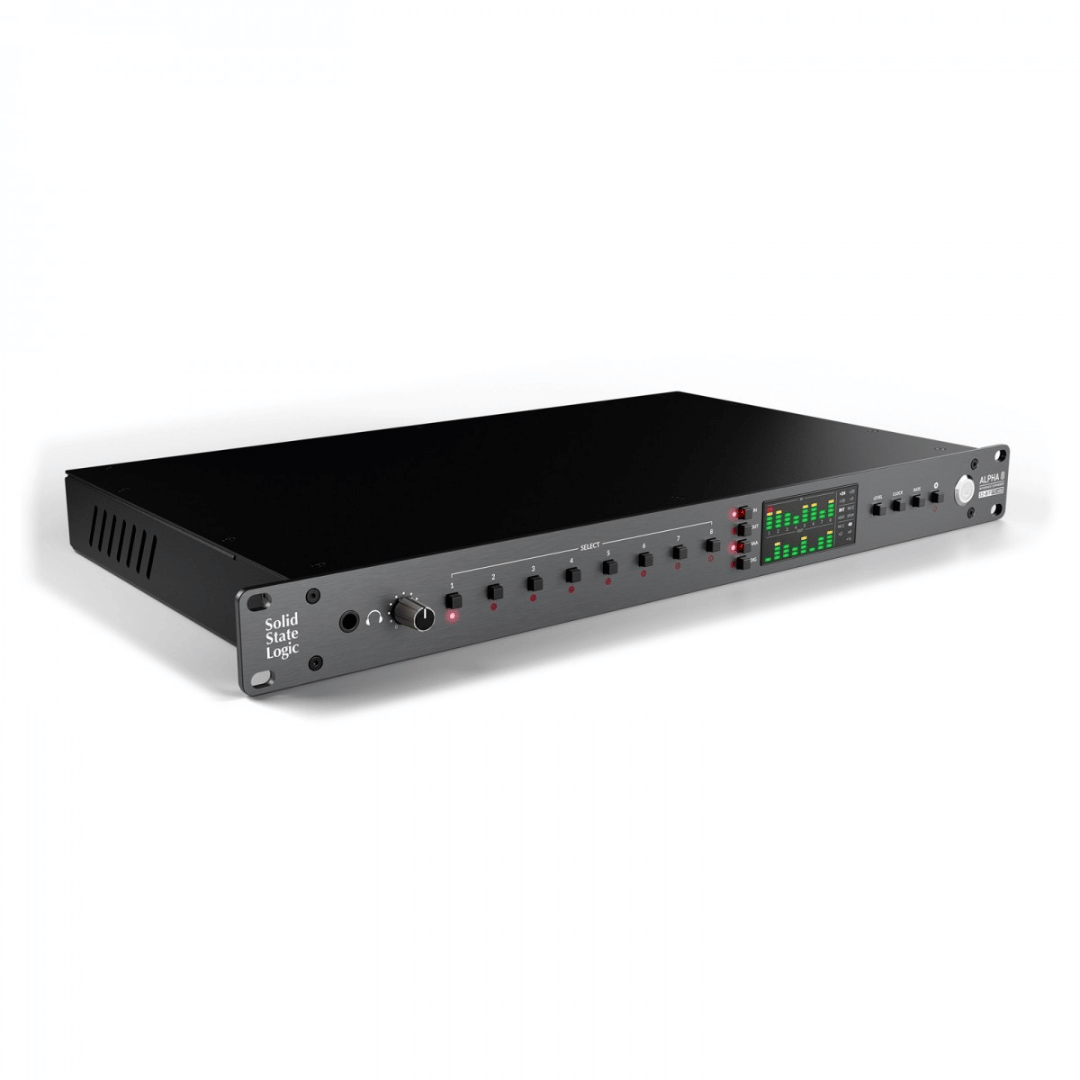

SSL ALPHA 8, 8 In/8 Out AD/DA Converter

The SSL ALPHA 8 is designed for advanced school studios that need to connect more synthesisers, drum machines, mixers or analogue processors. It can expand an existing audio interface through ADAT or S/PDIF, providing a practical progression route without replacing the core recording system.

Alternatively, a direct USB connection allows it to operate as an 18-in/18-out audio interface for line-level and digital equipment.

Education Highlights

• Eight balanced analogue line inputs and outputs

• Up to eight channels of ADAT input and output

• Two-channel coaxial or optical S/PDIF

• Operates as an 18-in/18-out USB-C interface

• Next-generation 32-bit/192kHz conversion

• Flexible routing between analogue, digital and USB connections

• Individually selectable +9, +18, +20 or +24dBu operating levels

• Useful for integrating synthesisers, drum machines, mixers and outboard processors

• DC-coupled outputs can control compatible modular and CV equipment

• Front-panel metering for all analogue channels

• Headphone output allows individual inputs, outputs or stereo pairs to be checked

• Word Clock input and output for larger digital systems

• Class-compliant operation on Mac; driver required for Windows

• Rugged 1U rackmount format

• Includes the SSL Production Pack of DAWs, instruments and plug-ins
