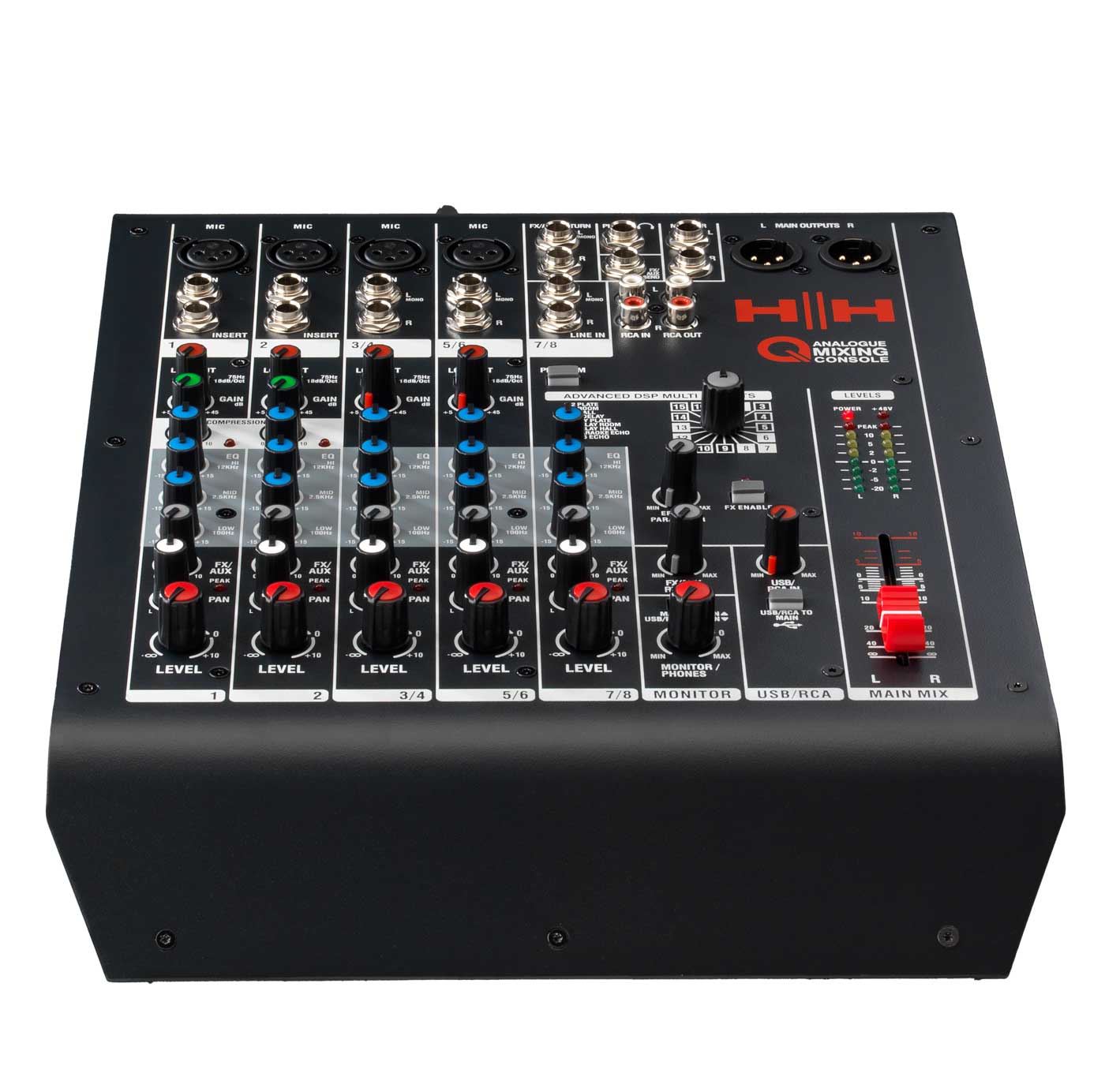

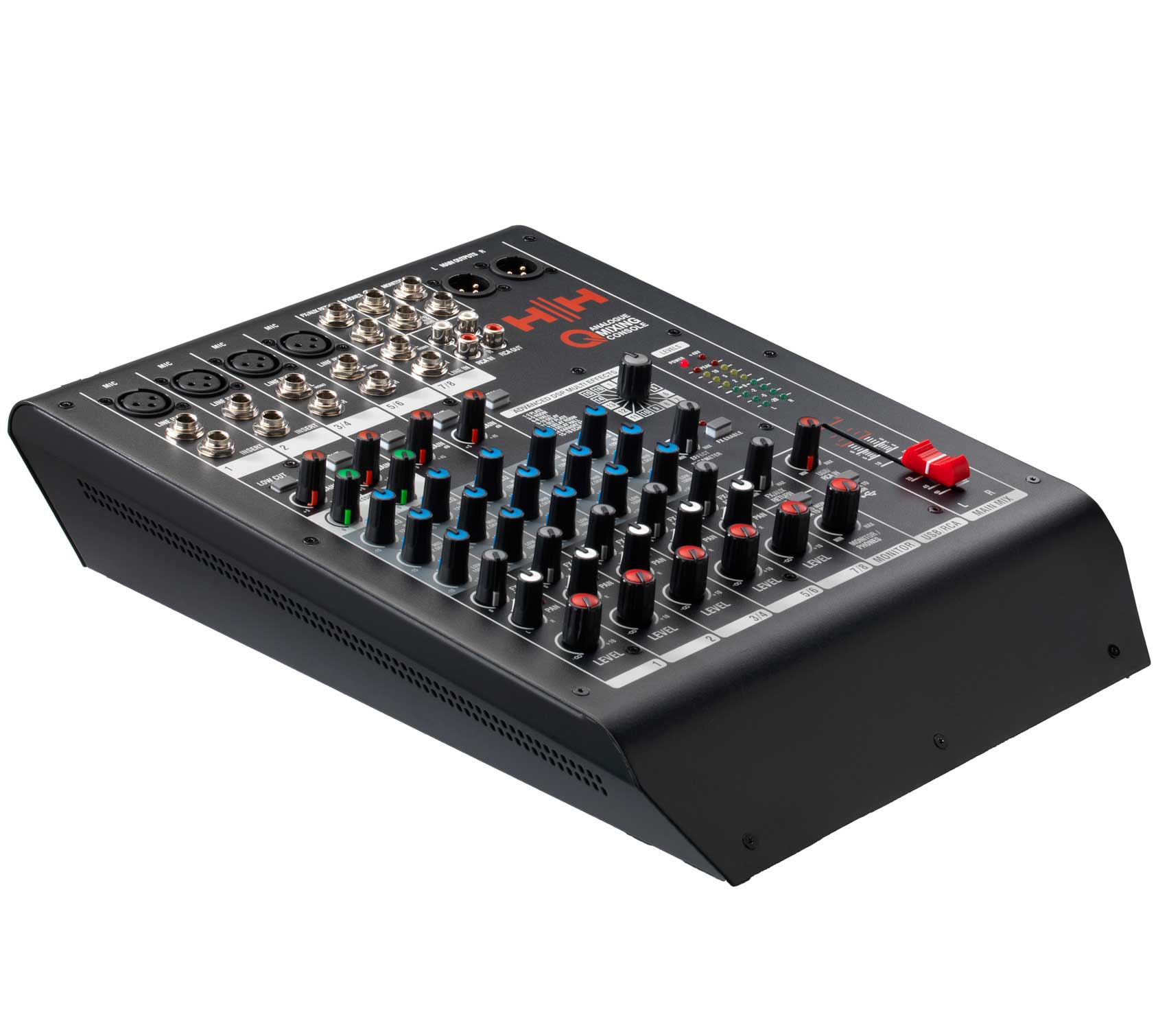

HH Q Series Q8FX Analogue Mixing Console

A straightforward mixer for music rooms, small halls, rehearsal spaces and hub events. HH Q Series Q8FX gives teachers and learners a clear analogue layout for mixing microphones, instruments, keyboards and playback sources.

It is useful for introducing live sound skills, recording lessons or performances, and running simple PA setups without the complexity of a larger digital desk.

Education Highlights

• 8-channel analogue mixer for classroom and small PA use
• 4 XLR microphone inputs with low-noise preamps
• 3 stereo line input channels for keyboards, drum machines or playback
• 2-in/2-out USB audio for recording and playback
• Supports 16-bit or 24-bit, 48kHz USB audio
• Single-knob compressors on channels 1 and 2
• 3-band EQ on every channel
• 75Hz low-cut filter on channels 1-6
• 16 DSP reverb and delay effects
• Global +48V phantom power for condenser microphones
• Balanced stereo XLR main outputs
• Stereo monitor out, headphone out and RCA in/out
• Aux send with stereo return
• 8-point LED meter for checking levels
• IEC mains powered, universal 100-240V
• Compact, robust chassis: 3.5kg
